Page 2



Update Nov. 30, 2008:  While the steps shown on this page do work for sanding the interior it is a tedious and time consuming process since you need to stop and re-mount the piece 4 times.  A much better, faster, and safer method is to sand the interior using a drum sander in the drill press or, even better if available, an oscillating spindle sander.



Added Photo:  Sanding interior with OSS





I installed my step jaws on my Talon chuck.



stepjaws-400

Photo #5:  Step jaws installed.



I mounted the blank on the chuck by expanding the jaws inside the hole.



expansionmount-400

Photo #6:  Blank mounted for sanding inside the holes.



I was then able to sand inside the holes to remove any marks left by the sawtooth bit.



sandinghole-400

Photo #7:  Sanding the holes.



I rotated the piece to grip on all four holes and sanded about half way in to the centre on each mounting.

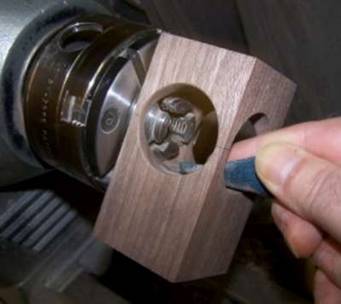

sandinghole2-400

Photo #8:  Faster shutter speed.

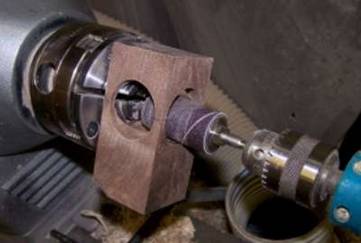

Alternatively, you can use a 1” drum sander mounted in an electric drill to sand the interior.  That is faster and keeps your fingers out of harm’s way.




Photo 8b:  Sanding with drum sander.
